Item Description:

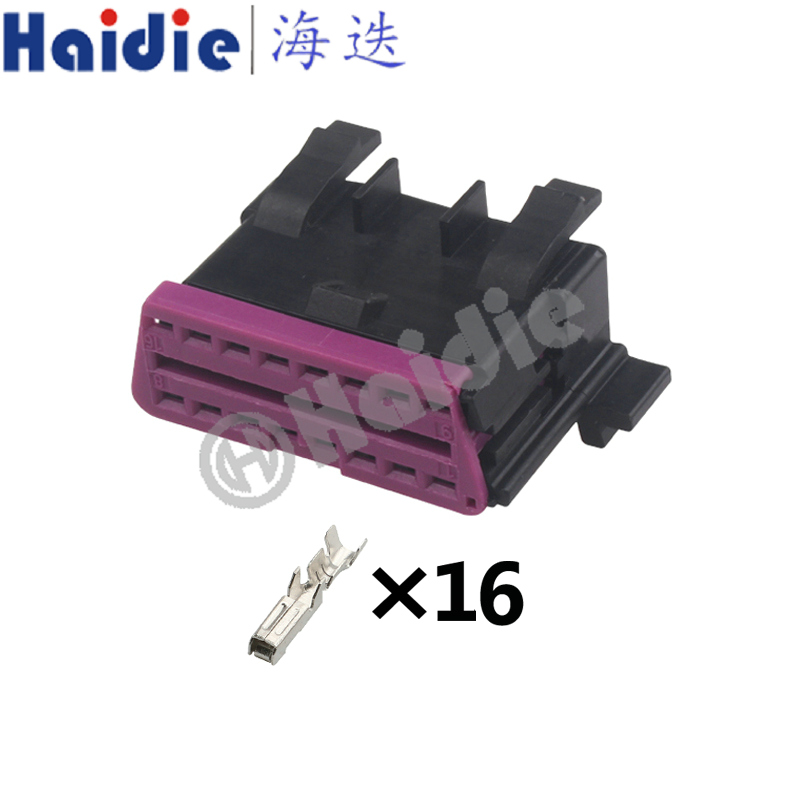

Connector with terminals

Tags: Connector with terminals

What are the Standard Pin Configurations for a 16-Pin Wiring Connector in Automotive Applications?

The standard pin configurations for a 16-pin wiring connector in automotive applications can vary depending on the specific wiring harness or connector standard employed. However, for a common 16-pin OBD-II (On-Board Diagnostics) connector used in vehicles, the pinout is standardized.

The OBD-II connector, often located under the dashboard near the driver's seat, typically has the following pin configurations:

Manufacturer Discretion
**J1850 Bus+
**J1850 Bus–
Chassis Ground
Signal Ground
ISO 9141-2 K Line
Manufacturer Discretion
Manufacturer Discretion
Manufacturer Discretion
ISO 9141-2 L Line
Manufacturer Discretion
Manufacturer Discretion
Manufacturer Discretion
J1962 Power (+)
ISO 9141-2, KW 2000
Battery Power (+)
It's essential to note that while the OBD-II connector follows a standardized pinout for certain functions, other 16-pin connectors in automotive applications may have different configurations based on the intended use and the manufacturer's specifications.

How Can I Identify the Correct Wiring Sequence for a 16-Pin Connector and Ensure Proper Installation in Electronic Devices?

To determine the correct wiring sequence for the 16 pin connector and ensure proper installation in the electronic device, HAIDIE ELECTRIC recommends that you perform the following steps:

Refer to documentation: Refer to the product documentation that comes with the connector or electronic device. Manufacturers often provide detailed information in user manuals, data sheets, or technical specifications, including lead out diagrams and wiring sequences.

Check the labels on the connector: Check if there are any labels, markings, or imprints indicating the pins or wiring sequence on the connector itself. Manufacturers can directly print or mark pin numbers on the connector housing.

Use standardized color codes: Check if the connectors follow the standardized color codes for wiring. Although not universal, certain industries or applications may comply with specific color coding conventions for wires. For example, in automotive applications, OBD II connectors typically follow standardized color codes.

Reference standards or specifications: If the connector is part of a standardized system, please refer to relevant industry standards or specifications. For example, in electronic products, connectors can comply with standards such as USB, HDMI, or Ethernet, each with defined pins.

Contact the manufacturer: If there are no documents or labels, or if you need further clarification, please contact the manufacturer directly. Most manufacturers have customer support services that provide accurate information about their connector wiring sequence.

Using a continuity tester or multimeter: With the help of setting the continuity tester or multimeter to continuity mode, you can determine the wiring sequence by testing the connections between pins.

This method requires an understanding of the expected connection mode, and cross validation with documentation or manufacturer support is recommended.
